🛠️ Titanium Forged Fittings
Titanium Forged Fittings are engineered for high-performance applications and manufactured by Ratanex, a trusted name in premium pipe fittings. We offer a comprehensive range of titanium socket weld fittings and threaded fittings suitable for corrosive and high-pressure environments.
✅ Titanium Forged Fittings Product Range

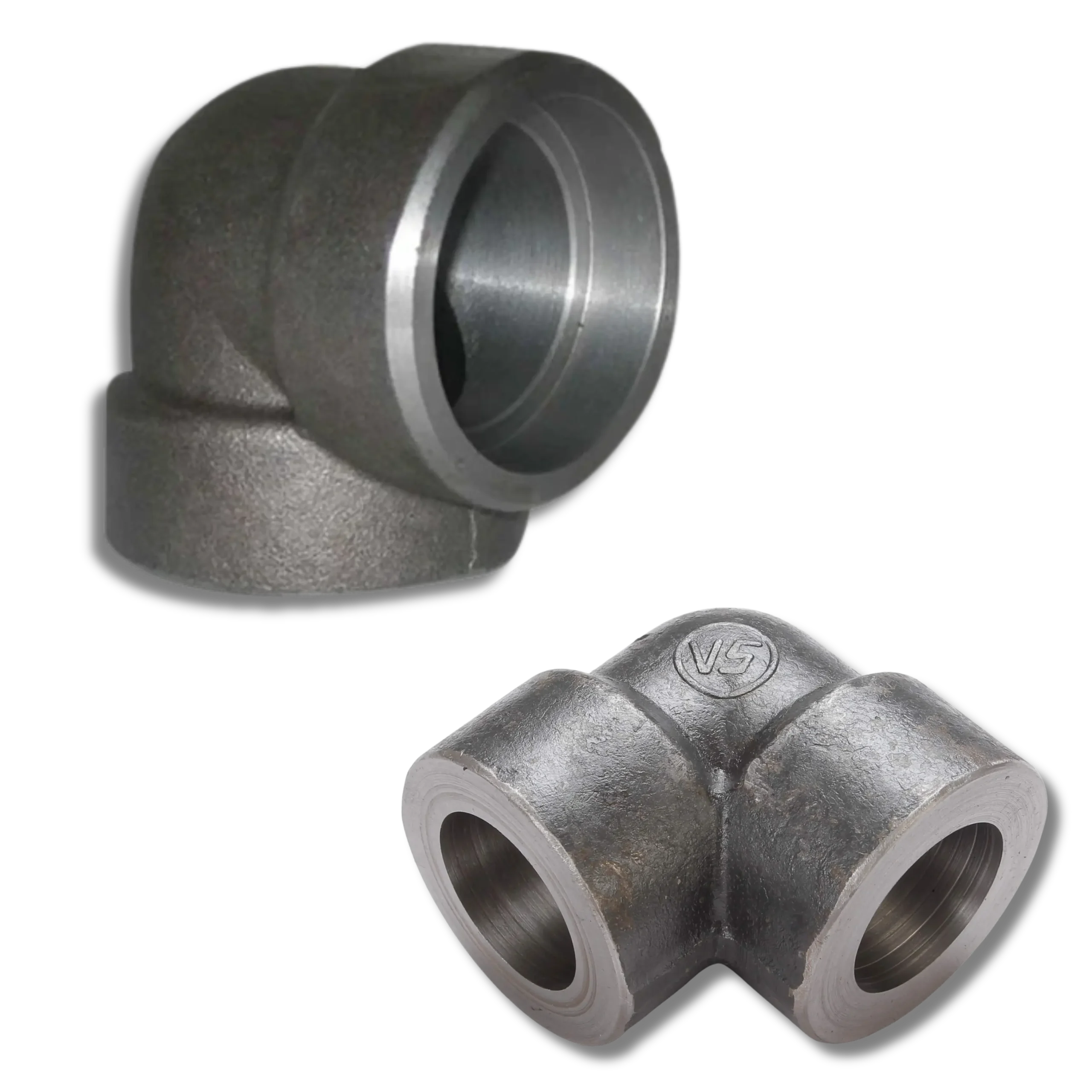

- Titanium Socket Weld Elbow & Threaded Elbow

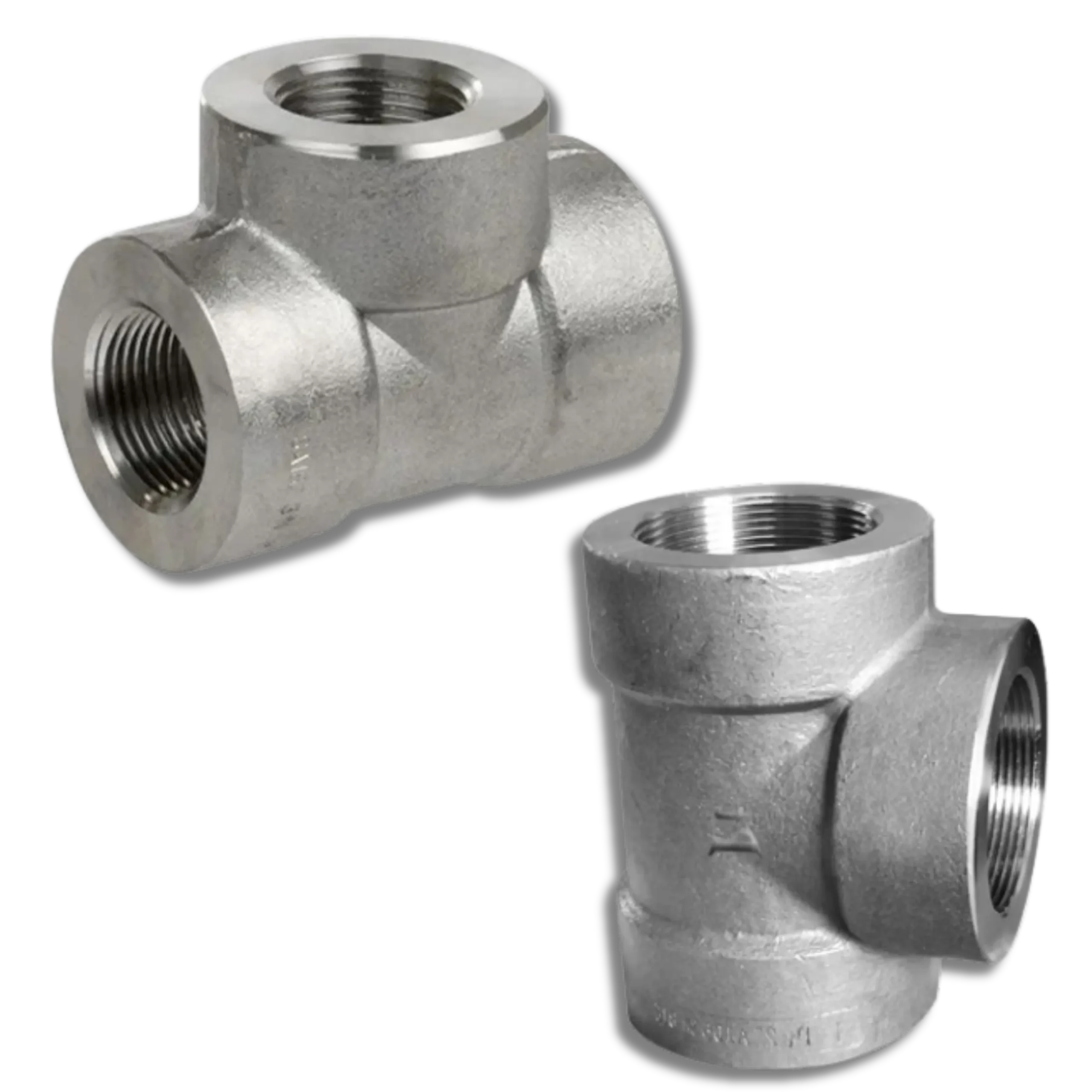

- Titanium Forged Tee (Equal & Reducing)
- Titanium Threaded Coupling (Full & Half)
- Titanium Cross, Bushings & Nipples
- High-pressure fittings: 3000#, 6000#, and 9000# available
- Conforming to ASTM B381, ASME B16.11 standards
Titanium Grade 1 Forged Fittings – Detailed Information
Ratanex offers premium quality Titanium Grade 1 Forged Fittings as per international standards like ASTM B381 and ASME SB381. These fittings are manufactured using UNS R50250 (WNR 3.7025) material and are ideal for use in marine, chemical, oil & gas, and aerospace industries due to their high corrosion resistance and lightweight properties.
Humare Titanium Gr. 1 fittings available hote hai in various types – Socket Weld Elbows, Threaded Tees, Couplings, Unions, Caps, Crosses, Bushings, Nipples etc. Yeh sab products ASME B16.11 aur MSS SP-79/83/95/97 jaise standards ke according bante hai.
| Product Standards |
Details |
| Material Grade |
Titanium Grade 1 (UNS R50250 / WNR 3.7025) |
| Specifications |
ASTM B381 / ASME SB381 |
| Size Range |
1/8” NB to 4” NB |
| Type |
Socket Weld & Threaded (NPT / BSP) |
| Pressure Rating |
2000 / 3000 / 6000 LBS (Threaded)
3000 / 6000 / 9000 LBS (Socket Weld) |
| Form |
Elbow, Tee, Coupling, Cross, Cap, Union, Bushing, Plug, Nipple |
Chemical Composition of Titanium Gr.1
- Carbon (C): ≤ 0.10%
- Iron (Fe): ≤ 0.20%
- Hydrogen (H): ≤ 0.015%
- Nitrogen (N): ≤ 0.03%
- Oxygen (O): ≤ 0.18%
- Titanium (Ti): Balance
🌟 Key Features & Materials
- Grades: Titanium Gr 2, Titanium Gr 5, and other custom grades
- Manufactured using closed-die forging for dimensional accuracy
- Superior corrosion resistance, strength-to-weight ratio & temperature stability
- Offered in NPT, BSPP & BSPT thread types
🏭 Industries & Applications
Ratanex serves critical industries such as petrochemicals, offshore drilling, shipbuilding, aerospace, medical, chemical processing, and power generation. Our titanium forged fittings ensure leak-proof joints, precise pressure tolerance, and longevity in tough industrial conditions.
📄 Titanium Forged Fittings Standards
- ASTM B381 Titanium Forged Fittings
- ASME B16.11 Socket Weld & Threaded Fittings
- ANSI, DIN, BS, and JIS standards on request
- 100% radiography & hydro testing, NACE & IBR compliance available
📋 Titanium Socket Weld & Threaded Fittings
| Type |
Class |
Size |
| Socket Weld Elbow 90° / 45° |
3000# / 6000# |
½″ to 4″ |
| Threaded Elbow 90° / 45° |
3000# / 6000# |
½″ to 4″ |
| Forged Tee (SW / Threaded) |
3000# / 6000# |
½″ to 4″ |
| Forged Cross |
3000# |
½″ to 4″ |
| Socket Weld Coupling / Half Coupling |
3000# / 6000# |
½″ to 4″ |
| Threaded Bushings & Plugs |
3000# |
½″ to 4″ |

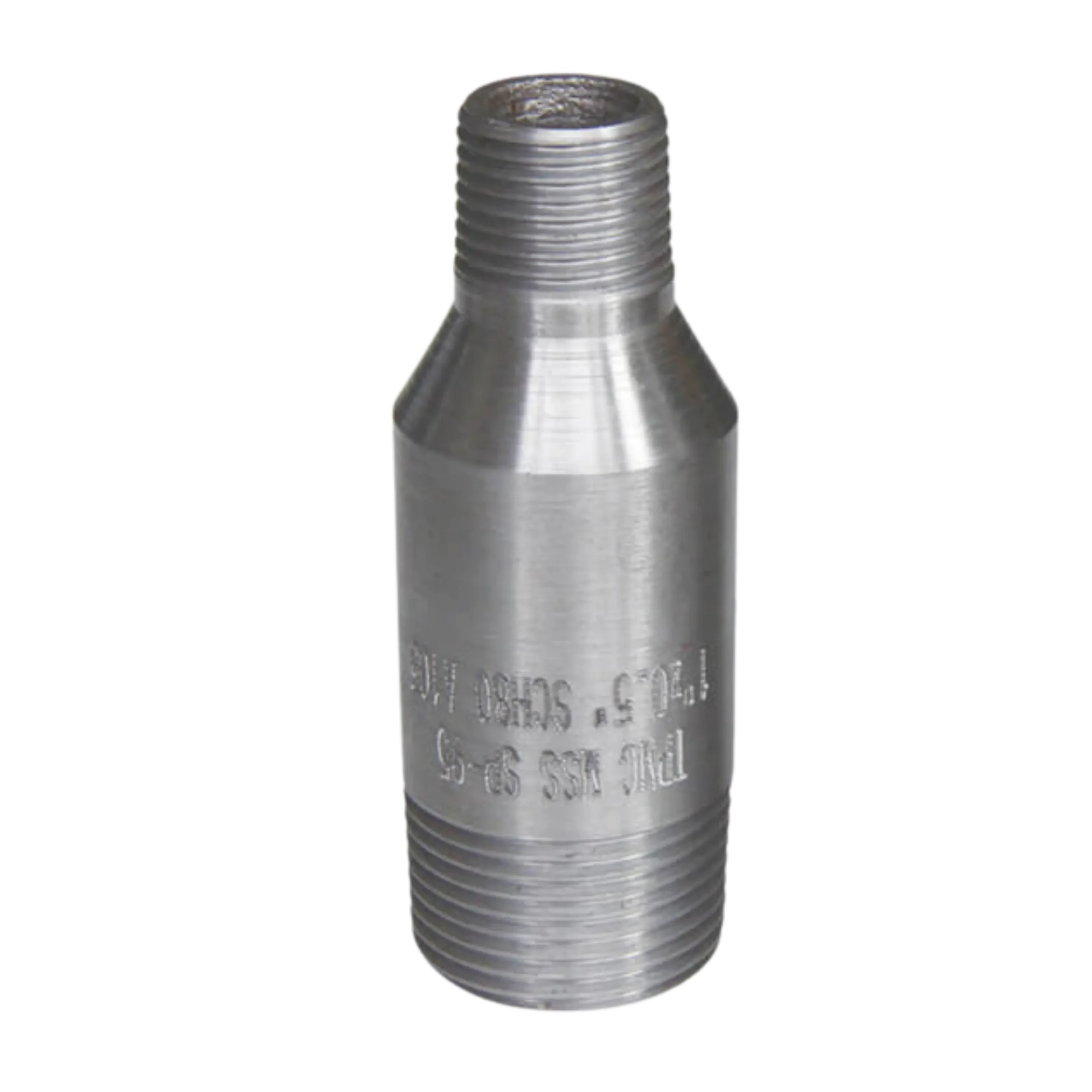

| Forged Pipe Nipple |
3000# |
½″ to 4″ |
📞 Need Titanium Forged Fittings?
Contact Ratanex today to get a quote or technical consultation. We ship across India including Mumbai, Gujarat, Chennai, and international locations.
