API 5L pipe Supplier and line dimensions

API 5L Pipes stand out as one of the most trusted materials in the industry. Designed and certified under the globally recognized American Petroleum Institute (API) specification, API 5L line pipes are the backbone of critical pipeline infrastructure across the world.
Whether you’re working on a small utility project or a large-scale oil & gas transmission line, API 5L steel pipes offer consistent quality, strength, and performance.

API 5L is a specification that covers seamless and welded carbon steel line pipes intended for use in pipeline transportation systems. These pipes are suitable for conveying gas, water, and oil across both aboveground and underground installations.
API 5L includes two major specification levels:
  • PSL1 (Product Specification Level 1) – Standard quality, basic mechanical and chemical properties.

  • PSL2 (Product Specification Level 2) – Enhanced performance, tighter tolerances, better mechanical properties, and additional testing for critical service.

API 5L pipes come in various steel grades such as X42, X46, X52, X56, X60, X65, X70, and X80 — each indicating its minimum yield strength in 1000s of PSI.

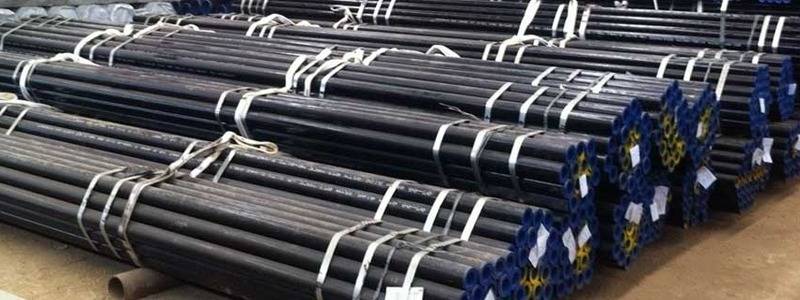

API 5L pipe

Table of Contents

Key Features of API 5L Line Pipes

  •  Manufactured to international standards (API 5L / ISO 3183)
  •  Available in seamless, ERW, LSAW, and DSAW forms
  • Suitable for sour service (NACE MR0175 / H2S environments)
  •  Available in black, bare, coated, and galvanized finishes
  •  Cut-to-length and beveled-end options available
  •  Wide range of thicknesses: SCH 10 to SCH XXS and beyond
  •  Mill Test Certificates (MTC) & third-party inspection reports provided

API 5L Pipe specification

Kinds of Steel Permitted For For Pipe Material
Open-hearth
Electric-furnace
Basic-oxygen
Hot-Dipped Galvanizing
May be ordered galvanized.
Supplying techniques
Welded Pipe
  • Straight seam submerged arc welding pipe(LSAW)
  • Resistance welded pipe (ERW)
  • Spiral submerged arc welded pipe (SSAW)
Seamless Pipe
ERW Pipe
SAW Pipe
Hot rolled seamless pipe
upto 20 inch (508 mm)
Seamless pipe (hot expanding processes) : upto 40 inch 1016 mm.
Specification
ASTM A1024 / A1024M, API 5L, ISO 3183
Scope
Covers WELDED and SEAMLESS pipe suitable for use in conveying gas, water, and oil in both the oil and natural gas industries.
API 5L Welded Pipe Standard
API 5L (Specification for Line Pipe – ANSI/API specification 5L – 44th Edition, October 1, 2007)
Sizes
Nominal Pipe Size 1/2″ to 48 ” O.D.
Wall Thickness – Schedule 10 through 160, STD, XS, XXS.
Value added service for Line Pipe Suppliers In India
  • Sand Blasting
  • Fusion Bond Epoxy
  • Tar Epoxy
  • ARO
  • Annealed
  • Draw & Expansion as per required Size & Length
  • 3LPE
  • Galvanizing
  • Heat Treatment
  • Bending
  • Machining etc.
API 5L Pipes Type
Seamless / ERW / Welded / Fabricated / CDW
Product Specification Level (PSL)
API 5L PSL 2
API 5L PSL 1
API 5L Dsaw Pipe Applications
Oil Refineries, Petrochemicals, Power Generation (Nuclear/Thermal), Steel, Sugar, Boiler Equipments, Pressure Vessels and General Engineering Purposes
API 5L Seamless Pipe End
Plain, Bevel, Screwed, Threaded
Thickness
SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules
API Line Pipe Length
Single Random, Double Random & Required Length, Custom Size – 12 Meter lengths
Testing and Inspection Reports
EN 10204 3.1, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, Destructive Test Report, Non Destructive Test Reports, Mill TC EN 10204 3.1, NABL Approved Lab, Chemical and Mechanical Reports, India Boiler Regulations (IBR) Test Certificate
API 5L PSL1 Pipe Finishes
Bare, Oiled, Mill Varnish, Galv, FBE, FBE Dual, 3LPE, 3LPP, Coal Tar, Concrete Coating and Tape Wrap. End Finishes: Beveled, Square Cut, Threaded & Coupled.
API 5L Schedule 40 Pipe Packing
API 5L GR. B Pipe Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
API 5L Seamless and Welded Pipe Application & uses
  • Suitable for sour services and in H2S environment
  • Large diameter API 5L Pipe for high pressure gas transportation
  • Suitable for Conveying gas, water, oil, and other liquefied media.
  • Thick wall API 5L Pipe for submarine pipeline
HS Code
  • 730451 Tubes, Pipes and Hollow Profiles, of Other Alloy Steel, Cold-drawn or cold-rolled (cold reduced)
  • 730490 Other Tubes, Pipes and Hollow Profiles, Seamless, of Iron or Steel
  • 730420 Casing, tubing and drill pipe, of a kind used in drilling for oil or gas: Casing:
  • 730431 Tubes, Pipes and Hollow Profiles, of Iron or Non-alloy Steel, Cold-drawn or cold-rolled (cold-reduced)
  • 730439 Other Tubes, Pipes and Hollow Profiles, of Iron or Non-alloy Steel
  • 730449 Other Tubes, Pipes and Hollow Profiles, of Stainless Steel, Seamless
  • 730459 Other Tubes, Pipes and Hollow Profiles, of Other Alloy Steel,
  • 730410 Line pipe of a kind used for oil or gas pipelines: Of iron or nonalloy steel:
  • 730441 Tubes, Pipes and Hollow Profiles, of stainless steel , Cold-drawn or cold-rolled (cold reduced)
Test Methods
  • Flattening test
  • Hydrostatic test
  • CVN impact test for PSL2 pipe (including pipe body tests, pipe weld and HAZ tests)
  • DWT test for PSL2 welded pipe
  • Bend test
  • Guided-bend test
BS EN 10208-2:2009
Steel pipes for pipelines for combustible fluids. Technical delivery conditions. Pipes of requirement class B. Suitable to use in maximum operating pressure over 16 bar.

Grades API 5L Pipe Suppliers in India

Grade L210 / A
210 MPa (30.5 ksi) YS
335 MPa (48.6 ksi) UTS
Grade L245 / B
245 MPa (35.5 ksi) YS
415 MPa (60.2 ksi) UTS
Grade L175 / A25
175 MPa (25.4 ksi) YS
310 MPa (45.0 ksi) UTS
Grade L290 / X42
290 MPa (42.1 ksi) YS
415 MPa (60.2 ksi) UTS
Grade L320 / X46
320 MPa (46.4 ksi) YS
435 MPa (63.1 ksi) UTS
Grade L360 / X52
360 MPa (52.2 ksi) YS
460 MPa (66.7 ksi) UTS
Grade L390 / X56
390 MPa (56.6 ksi) YS
490 MPa (71.1 ksi) UTS
Grade L415 / X60
415 MPa (60.2 ksi) YS
520 MPa (75.4 ksi) UTS
Grade L450 / X65
450 MPa (65.3 ksi) YS
535 MPa (77.6 ksi) UTS
Grade L485 / X70
485 MPa (70.3 ksi) YS
570 MPa (82.7 ksi) UTS
Grade L555 / X80

Grade X100 and X120



API 5L Seamless and Welded Pipe Delivery Condition

PSL
Delivery condition
Pipe grade/steel gradea,b
PSL1
As-rolled, normalizing rolled, normalized or normalizing formed
L176 or A25
L175P or A25P
L210 or A
As-rolled, normalizing rolled, thermomechanical rofled, thermoinechanical formed,  normalizing formed, normalized , normalized and tempered; or, If agreed,  quenched and tempered for SMLS pipe only
L245 or B
As-rolled, normalizing rolled, thermomechanical rolled, thermomechanical formed,  normalizing formed, normalized , normalized and tempered; or quenched and tempered
L290 or X42
L320 or X46
L360 or X52
L390 or X56
L415 or X60
L450 or X65
L485 or X70
PSL 2
As-rolled
L246R or BR
L290R or X42R
Normalizing rolled, normalizing formed, normalized or normalized and tempered
L245N or BN
L290N or X42N
L320N or X46N
L360N or X52N
L390N or X56N
L415N or X60N
Quenched and tempered
L245Q or BQ
L290Q or X420
L320Q or X460
L360Q or X520
L390Q or X56Q
L415Q or X600
L450Q or X65Q
L485Q or X70Q
L555Q or X800
L625Q or X90Qc
L690Q or XI00Qc
Thermomechanical rolled or thermomechanical formed
L245M or BM
L290M or X42M
L320M or X46M
L360M or X52M
L390M or X56M
L415M or XSOM
L450M or X65M
L4S5M or X70M
L555M or X80M
Thermomechanical rolled
L625M or X90M
L690M orXIOOM
L830M orX120M
  • The letter L followed by the specified minimum yield strength in Mpa. For example, L290 (X42) means the minimum yield strength is 290 Mpa. In case of PSL2 pipe, Suffix letter (R, N, Q or M) shall be added to describe the delivery condition;
  • The letter X followed by a two or three digital number equal to the minimum yield strength in 1000 psi rounded down to the nearest integer and, for PSL2 pipe, the letter describing the delivery condition (R, N, Q, or M) consist with the above formats.
Letter R: As rolled
Letter N: Normalizing rolled, Normalized formed, Normalized
Letter M: Thermomechanical rolled or thermomechanical formed
Letter Q: Tempered and quenched


Supplying difference between API 5L PSL1 & PSL2 Pipes

API 5L Schedule 40 Pipe is the abbreviation of product specification level.
PARAMETER
PSL1
PSL2
Size range
0.405″ through 80″
4.5″ through 80″
Certification
Traceable only until all tests are passed
Certificates (SR15.1) mandatory
Repair by welding of pipe body plate, and skelp
Permitted
Prohibited
Material Grade
PLS1 pipes are available in grade A25 through X70
PSL2 pipes are available in Grade B through X80
Traceability
Only until all tests are passed unless SR15 is specified
After completion of tests (SR15.2) mandatory
Electric welds: welder frequency
No minimum
kHz minimum 100
Heat treatment of electric welds
Required for grades >X42
Required for all grades (B through X80)
Non-destructive inspection of Seamless
Only when purchaser specifies SR4
SR4 mandatory
Type of Pipe ends
Plain end, Threaded end,Bevelled end special coupling pipes
Plain end
Seam welding
All methods: continuous welding limited to A25
All methods: except continuous welding and laser welding
Repair by welding of weld seams without filler metal
Permitted by agreement
Prohibited
Check the updated price list with free sample of Line Pipe Suppliers In India and Api 5l Seamless Line Pipe at cheap rate.



Types of API Line Pipes

API 5L Pipe Material
API 5L DSAW Pipe
API 5L Steel Pipe
API 5L ERW Pipe
API 5L Pipe Fittings
API 5L Galvanized Pipe
API 5L LSAW Pipe
Grade a25 pipe
API 5L Line Pipe
API 5L PSL1 Pipe
API 5L Schedule 40 Pipe
API 5L PSL2 Pipe
API 5L Seamless Line Pipe
API 5L Seamless Pipes
API 5L Welded Pipe
API 5L Schedule 80 Pipe
API 5L Pipe Line
API Drill Pipe
API Seamless Pipe
API 5L Seamless Pipe
API 5L Seamless and Welded Pipe
API 5L Schedule 40 Pipe
API 5L X65 carbon steel pipe
API 5L X65 Tuberia
API 5L X65 Tubo
API 5L X65 Tubular
ISO 3183 L450 Pipe
Api 5l Pipe
Api 5l Erw Pipe
Api 5L SSAW Pipe
API 5l Line Pipe
Api 5l Seamless Line Pipe

Permissible Variations in Wall Thickness

Grade A, B, A25 Pipe
X42 through X80

NPS 4 through 18 — Seamless and welded, %
+15 — 12.5
+15 — 12.5
NPS 3 — Seamless and welded, %
+18 — 12.5
+15 — 12.5
NPS 20 and larger — Welded, %
+17.5 — 10.0
+19.5 — 8.0
NPS 20 and larger — Seamless, %
+15.0 — 12.5
+17.5 — 10.0
NPS 2 1/2 and smaller — Seamless and welded, %
+20 — 12.5
+15 — 12.5

API 5L Welded Pipe Coating

Fusion Bonded Epoxy Coating (FBE Coating)
3LPE Coating
Food Grade Epoxy Coatings
PTFE Coating
Phenolic Epoxy Coating
Glass Flake Coatings
Elastomeric Polyurethane Coating
Internal & External Coating
Halar Coatings
Any Liquid Epoxy Coating
Api 5l Dsaw Pipe Coating
Line Pipe Suppliers In India Coating

API 5L Pipe Price List

API 5L  Line Pipe Stock in Mumbai and API 5L PSL1 Pipe and API 5L PSL2 Pipe Price List
API 5L Welded Pipe Suppliers in India ,  API 5L Welded Pipe Suppliers price per Kg in India
INR: 200/Kg approx.
API 5L Seamless Pipe Suppliers in India, , API 5L  Seamless Pipe Suppliers price per Kg in India
INR: 250/Kg approx.


API 5L Pipe Length

Threaded & Coupled Pipe
Shortest Length in Entire Shipment
Shortest Length in 95% of Entire Shipment
Minimum Average Length of Entire Shipment
Single Random
16′ 0″
18′ 0″
—
Double Random
22′ 0″
—
35′ 0″

General Information about API 5L law line pipe

Supplementary Requirements available when specified.

SR3
Color Identification.
SR4
Nondestructive Inspection of Seamless Pipe.
SR5
Charpy impact Testing – Welded Pipe 20″ & larger – Grade X52 or higher.
SR6
Drop Weight Tear Testing – Welded Pipe 20″ & larger -Grade X52 or higher.
SR8
Fracture Toughness Testing of Line Pipe.

Required Markings on Each Length



(On Tags attached to each Bundle in case of Bundled Pipe)of API 5L Schedule 40 Pipe, API 5L Seamless and Welded Pipe

  • Length (NPS 4 and larger only)
  • Grade
  • Weight per foot
  • Type of steel
  • Spec 5L, size
  • Paint Stenciled or Die Stamped (by agreement)
  • Heat treat symbols, as applicable — HN, HS, HA or HQ
  • Supplying name or mark
  • Test pressure when higher than tabulated (NPS 2 and larger only)
  • Process of suppliers

API 5l Seamless Line Pipe Yield and Tensile Strength

API 5L Seamless Steel Pipes, API 5L Welded Pipes Mechanical Properties


Mechanical Properties of API 5L PSL1 Pipe

Elongation :E=1944 A 0.2 /U 0.9
Grade
Yield Strength(Min.)
Tensile Strength(Min.)
Ksi
MPa
Ksi
MPa
X42
42
290
60
414
B
35
241
60
414
X46
46
317
63
434
X52
52
359
66
455
X56
56
386
60
414
X60
60
414
63
434
X65
65
448
66
455
Stock for sale of API 5L Line Pipe in wide Sizes, Dimensions & Specifications


Mechanical Properties of API 5L PSL2 Pipe

Elongation :E=1944 A 0.2 / U 0.9
Grade
Yield Strength
Tensile Strength
Min
Max
Min
Max
Ksi
MPa
Ksi
MPa
Ksi
MPa
Ksi
MPa
B
35
241
65
448
60
414
110
758
X42
42
290
72
496
60
414
110
758
X46
46
317
76
524
63
434
110
758
X52
52
359
77
531
66
455
110
758
X56
56
386
79
544
71
490
110
758
X60
60
414
82
565
75
517
110
758
X65
65
448
87
600
77
531
110
758
api 5l seamless pipe Supplier, api 5l erw pipe Exporter in india
Buy API 5L Pipe Suppliers in India complying with NACE MR0175, Check api 5l hfw Pipe, API 5L Seamless and Welded Pipe price List


Industries We Serve

We proudly serve a broad spectrum of industries, including:
  • Oil & Gas Transmission
  • Offshore Oil Platforms
  • Petrochemical & Refineries
  • Water Supply & Irrigation
  • Power Generation
  • Construction & Infrastructure
  • Energy and Utility Companies


Export Ready – Global Supply

We are trusted exporters of API 5L pipes from India to countries across the globe including the USA, Canada, Australia, Germany, Brazil , and the United Kingdom. Fast quotes, custom sizes, and bulk orders available.
Let us know what you need—we’ll take care of the rest
Supplies from Different Countries

Supplies from Different Countries

Flag Country Code
🇮🇳 India IN
🇺🇸 United States US
🇬🇧 United Kingdom GB
🇨🇳 China CN
🇯🇵 Japan JP
🇩🇪 Germany DE
🇮🇹 Italy IT
🇹🇷 Turkey TR
🇦🇪 United Arab Emirates AE
🇸🇦 Saudi Arabia SA
🇶🇦 Qatar QA
🇴🇲 Oman OM
🇰🇼 Kuwait KW
🇦🇺 Australia AU
🇨🇦 Canada CA
🇳🇱 Netherlands NL
🇮🇩 Indonesia ID
🇪🇬 Egypt EG
